$715.00
Vivotek FE9382-EHV-V2, 6MP Outdoor Network Fisheye Dome Camera with Night Vision
$715.00
In Stock & Ready to ship
Freight Calculator
- •Brand: Vivotek
- •Warranty: 3 Year
- •Model: 99X365480

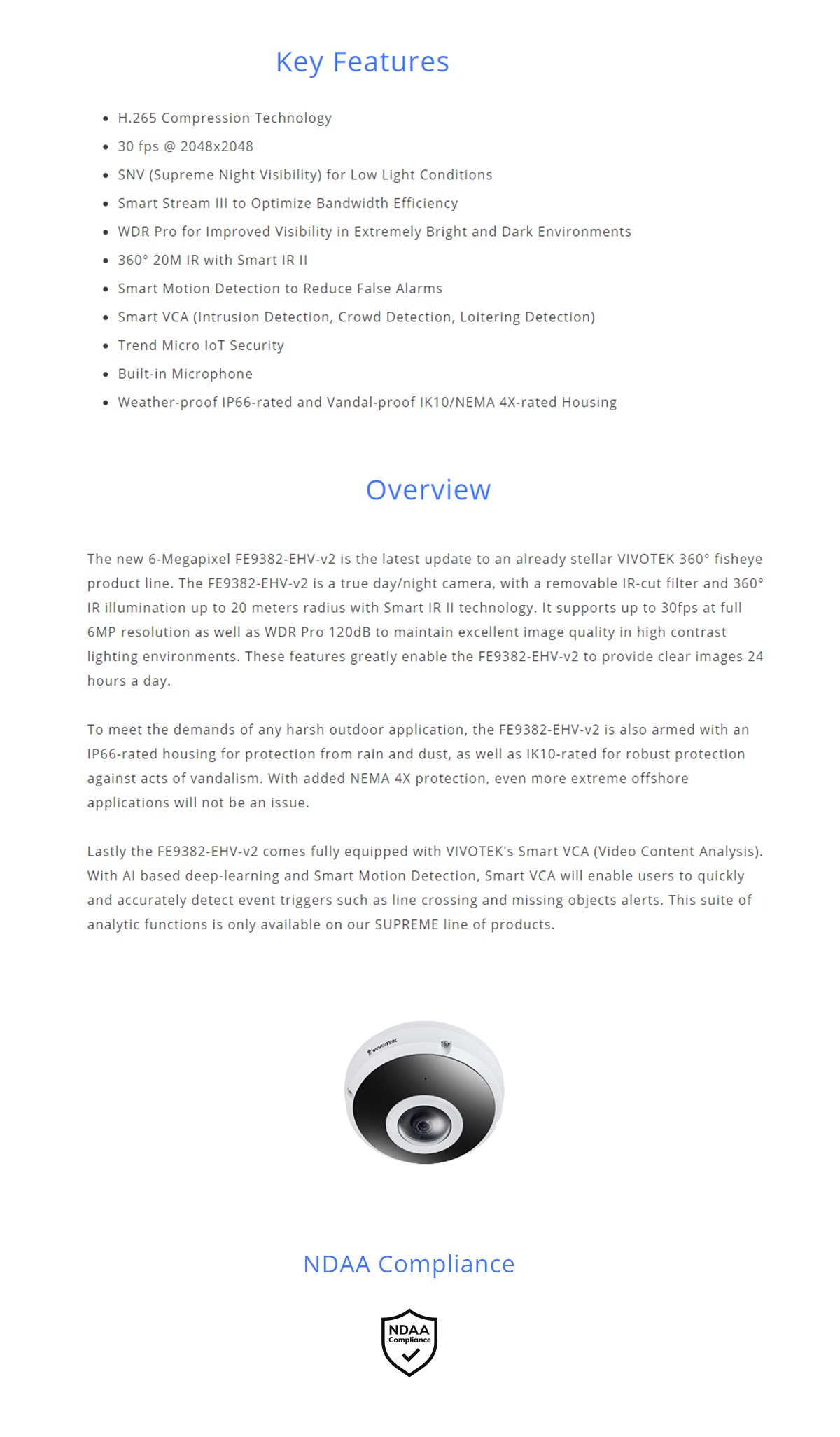

The Vivotek FE9382-EHV-V2 Surveillance/IP Camera is equipped with a powerful Multimedia SoC, 8GB Flash storage, and 2GB RAM, making it ideal for advanced security applications. With a warranty of 3 years, this camera ensures reliable performance and seamless integration with existing surveillance systems. Suitable for both professional installations and DIY setups, the FE9382-EHV-V2 delivers high-quality video footage and advanced features for enhanced security monitoring. Trust Vivotek for your surveillance needs. Buy Now!
Need Help or Found it Cheaper?
Chat with our experts for product advice or price matching on genuine written quotes.
System Information
- Model
- FE9382-EHV-v2
- CPU
- Multimedia SoC (System-on-Chip)
- Flash
- 8 GB
- RAM
- 2 GB
Camera Features
- Image Sensor
- 1/1.8" Progressive CMOS in 3840x2160
- Max. Resolution
- 2048x2048
- Lens Type
- Fixed-focal
- Focal Length
- f = 1.245 mm
- Aperture
- F1.6
- Iris Type
- Fixed iris
- Field of View
- 180° (Horizontal)
180° (Vertical)
180° (Diagonal)
- Shutter Time
- 1/5 sec. to 1/32,000 sec.
- WDR Technology
- WDR Pro
- Day/Night
- Yes
- Removable IR-cut Filter
- Yes
- IR Illuminators
- Built-in IR illuminators, effective up to 20 meters (50IRE) with Smart IR II, IR LED*4
- Minimum Illumination
- 0.065 lux @ F1.6 (Color)
<0.001 lux @ F1.6 (B/W)
0 lux with IR illumination on
- Pan/Tilt/Zoom Functionalities
- ePTZ: 12x digital zoom (12x on IE plug-in)
- Storage
- Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Video
- Video Compression
- H.265, H.264, MJPEG
- Maximum Frame Rate
- 30 fps @ 2048x2048 (WDR On)
- Maximum Streams
- 3 video streams (Up to 8 configurable profiles)
- S/N Ratio
- 69.6 dB
- Dynamic Range
- 120 dB
- Video Streaming
- Adjustable resolution, quality and constant bit rate control, Smart Stream III
- Image Settings
- General settings: video title and time stamp overlay, video orientation (flip, mirror), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, scene mode (auto, deblur); Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR; Privacy mask; Scheduled profile settings
- Display Mode
- Client Dewarping
Ceiling mounted: 1O Fisheye, 1P Panoramic, 2P Two Panoramics, 1R One Region, 4R Four Regions, 1O3R One Fisheye Three Regions, 1O8R One Fisheye Eight Regions
Wall mounted: 1O Fisheye, 1P Panoramic, 1R One Region, 4R Four Regions, 1P2R One Panoramic Two Regions, 1P3R One Panoramic Three Regions, 1O3R, One Fisheye Three Regions
Local Dewarping
Ceiling mounted: 1O Fisheye, 1P Panoramic, 2P Two Panoramics, 1R One Region, 4R Four Regions
Wall mounted: 1O Fisheye, 1P Panoramic, 1R One Region, 4R Four Regions
Audio
- Audio Capability
- Two-way Audio
- Audio Compression
- G.711, G.726, MPEG-2 AAC-LC
- Audio Interface
- Built-in microphone
External microphone input (FE9382-EHV-v2 (IO Cable), p/n 100273600G version only)
External line output (FE9382-EHV-v2 (IO Cable), p/n 100273600G version only)
- Effective Range
- 5 meters
Network
- Users
- Live viewing for up to 10 clients
- Security
- Access list, digest authentication, HTTPS , IEEE 802.1x, password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
- Protocols
- 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
- Interface
- 10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
- ONVIF
- Profile G, S, T supported, specification available at www.onvif.org
AI Analytics
- Compute Capability
- SoC with built-in hardware deep learning accelerator
- Vision Object Analytics
- Object Detection: people, vehicle (4-wheeled, 2-wheeled);
Attribute Extraction: people (gender, color, bag, hat), vehicle (bike, bus, car, motorcycle, truck, color);
Re-Search Extraction;
Path Extraction
- Application
- Deep Learning VCA (Smart Motion Detection, Smart VCA)
Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, Unattended object detection, Missing object detection, Face detection, Crowd detection)
- Application available with license
- Running detection, Parking Violation Detection, Restricted Zone Detection
Support for more analytic applications and free trial, please visit vivotek.com/video-analytics
- AI-powered Image Enhancement
- Smart IR III
Alarm and Event
- Event Trigger
- Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
- Event Action
- Event notification via digital output, email, HTTP, FTP, NAS server, SD card
File upload via email, HTTP, FTP, NAS server, SD card
General
- Connectors
- RJ-45 cable connector for 10/100 Mbps PoE network connection
Audio input*
Audio output*
DC 12V power input*
Digital input*
Digital output* (DO+: 12V, 50mA; DO-: 30V, Open Drain, 1A)
* Requires optional cable
- LED Indicator
- System power and status indicator
- Power Input
- IEEE 802.3af PoE Class 0
- Power Consumption
- Max. 12.5 W/5 W (IR on/off)
- Dimensions
- Ø 150 x 68.2 mm
- Weight
- 701 g
- Certifications
- EMC: CE (EN 55032 Class A, EN 55024), FCC (FCC Part 15 Subpart B Class A), VCCI (VCCI-CISPR 32 Class A); Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22); Environment: IK10 (Metal housing; IEC 62262), IP66 (IEC 60529), NEMA (NEMA 250 Type 4X); IA: BIS (IS 13252)
- Operating Temperature
- Starting Temperature:
-20°C ~ 55°C (-4°F ~ 131°F)
Working Temperature:
-40°C ~ 60°C (-40°F ~ 140°F) (IR off)
-40°C ~ 55°C (-40°F ~ 131°F) (IR on)
- Humidity
- 90% RH (non-condensing)
System Requirements
- Operating System
- Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
- Web Browser
- Chrome 58.0 or above
Internet Explorer 10/11
- Other Players
- VLC: 1.1.11 or above
Included Accessories
- Packing Contents
- Quick installation guide, alignment sticker, screw pack, desiccant bag
