$741.90
Teltonika TRB500, Industrial 5G Gateway, Ultra-high cellular speeds of up to 1 Gbps, Backward compatible with 4G (LTE CAT 20) network
$741.90
Out of Stock
Freight Calculator
- •Brand: Teltonika
- •Warranty: 2 Year
- •Model: 99X364850

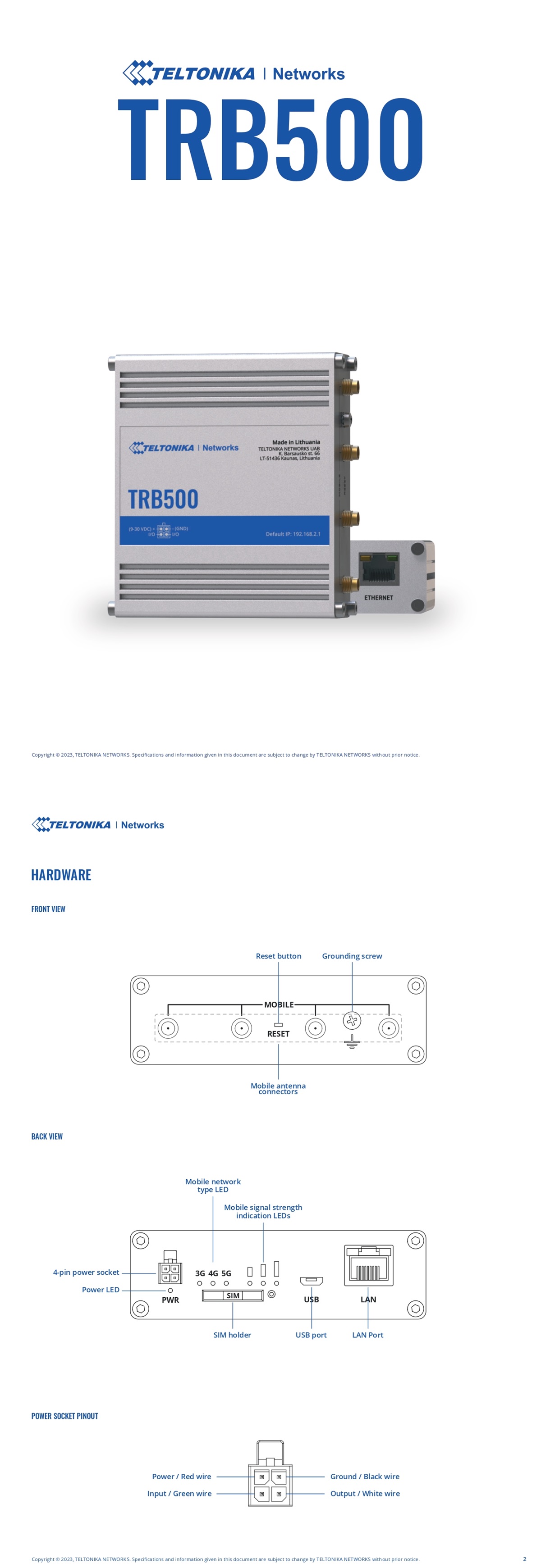

The Teltonika TLT LAN TRB500 Mobile Router is a top-of-the-line networking product designed for professionals on the move. With a 2 year warranty, this router provides reliable and fast connectivity, perfect for IT professionals, businesses, and anyone requiring seamless internet access. Featuring advanced specifications and Teltonika's trusted brand name, the TLT LAN TRB500 ensures secure and efficient networking, allowing users to stay connected wherever they go. With Teltonika VPN compatibility and a host of other technical benefits, this router is the ideal choice for those seeking high-performance networking solutions.
Need Help or Found it Cheaper?
Chat with our experts for product advice or price matching on genuine written quotes.
MOBILE
-
Mobile module
5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2); 4G LTE Cat 20 up to 2.0 Gbps DL/ 200M Mbps UL; 3G up to 42 DL/ 5.76 UL Mbps
-
Status
IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
-
SMS
SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
-
USSD
Supports sending and reading Unstructured Supplementary Service Data messages
-
Black/White list
Operator black/white list (by country or separate operators)
-
Band management
Band lock, Used band status display
-
APN
Auto APN
-
Bridge
Direct connection (bridge) between mobile ISP and device on LAN
-
Passthrough
Gateway assigns its mobile WAN IP address to another device on LAN
-
Framed routing
Framed routing: support an IP network behind 5G UE
ETHERNET
-
Ethernet
1 x ETH port, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
NETWORK
-
Routing
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
-
Network protocols
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
-
VoIP passthrough support
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
-
Connection monitoring
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
-
Firewall
Port forward, traffic rules, custom rules
-
Firewall status page
View all your Firewall statistics, rules, and rule counters
-
Ports management
View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
-
Network topology
Visual representation of your network, showing which devices are connected to which other devices
-
Hotspot
Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
-
DHCP
Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
-
DDNS
Supported >25 service providers, others can be configured manually
-
Network backup
Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
-
SSHFS
Possibility to mount remote file system via SSH protocol
SECURITY
-
Authentication
Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & login attempts block, time-based login blocking, built-in random password generator
-
Firewall
Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
-
Attack prevention
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
-
VLAN
Port and tag-based VLAN separation
-
Mobile quota control
Mobile data limit, customizable period, start time, warning limit, phone number
-
WEB filter
Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
-
Access control
Flexible access control of SSH, Web interface, CLI and Telnet
VPN
-
OpenVPN
Multiple clients and a server can run simultaneously, 27 encryption methods
-
OpenVPN Encryption
DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,
BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
-
IPsec
IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
-
GRE
GRE tunnel, GRE tunnel over IPsec support
-
PPTP, L2TP
Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
-
Stunnel
Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
-
DMVPN
Method of building scalable IPsec VPNs
-
SSTP
SSTP client instance support
-
ZeroTier
ZeroTier VPN client support
-
WireGuard
WireGuard VPN client and server support
-
Tinc
Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.
OPC UA
-
Supported modes
Client, Server
-
Supported connection types
TCP
MODBUS
-
Supported modes
Server, Client
-
Supported connection types
TCP
-
Custom registers
MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
-
Supported data formats
8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
DATA TO SERVER
-
Protocol
HTTP(S), MQTT, Azure MQTT, Kinesis
-
Data to server
Extract parameters from multiple sources and different protocols, and send them all to a single server
MQTT GATEWAY
-
Modbus MQTT Gateway
Allows sending commands and receiving data from MODBUS Server through MQTT broker
DNP3
-
Supported modes
Station, Outstation
-
Supported connection
TCP
DLMS
-
DLMS Support
DLMS - standard protocol for utility meter data exchange
-
Supported modes
Client
-
Supported connection types
TCP
API
-
Teltonika Networks Web API (beta) support
Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com
MONITORING & MANAGEMENT
-
WEB UI
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
-
FOTA
Firmware update from server, automatic notification
-
SSH
SSH (v1, v2)
-
SMS
SMS status, SMS configuration, send/read SMS via HTTP POST/GET
-
Call
Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer
-
TR-069
OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
-
MQTT
MQTT Broker, MQTT publisher
-
SNMP
SNMP (v1, v2, v3), SNMP Trap
-
JSON-RPC
Management API over HTTP/HTTPS
-
RMS
Teltonika Remote Management System (RMS)
IOT PLATFORMS
-
Cloud of Things
Allows monitoring of: Device data, Mobile data, Network info, Availability
-
ThingWorx
Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
-
Cumulocity
Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength
-
Azure IoT Hub
Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type
SYSTEM CHARACTERISTICS
-
CPU
Single core ARM Cortex A7, 1.5 GHz
-
RAM
256 MB (128 MB available for userspace)
-
FLASH storage
512 MB (200 MB available for userspace)
FIRMWARE / CONFIGURATION
-
WEB UI
Update FW from file, check FW on server, configuration profiles, configuration backup
-
FOTA
Update FW
-
RMS
Update FW/configuration for multiple devices at once
-
Keep settings
Update FW without losing current configuration
-
Factory settings reset
A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration
FIRMWARE CUSTOMISATION
-
Operating system
RutOS (OpenWrt based Linux OS)
-
Supported languages
Busybox shell, Lua, C, C++, and Python, Java in Package manager
-
Development tools
SDK package with build environment provided
-
GPL customization
You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
INPUT / OUTPUT
-
Input
1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
-
Output
1 x Digital Output, Open collector output, max output 30 V, 300 mA
-
Events
Email, RMS, SMS
-
I/O juggler
Allows to set certain I/O conditions to initiate event
POWER
-
Connector
4-pin industrial DC power socket
-
Input voltage range
9 – 30 VDC, reverse polarity protection, surge protection +/-1 kV 50 µs max
-
Power consumption
Idle: < 3 W, Max < 6 W
PHYSICAL INTERFACES
-
Ethernet
1 x RJ45 port, 10/100/1000 Mbps
-
I/O’s
2 x Configurable I/O pins on 4-pin power connector
-
Status LEDs
3 x connection type status LEDs, 3 x connection strength LEDs, 2 x ETH status LEDs, 1 x Power LED
-
SIM
1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
-
Power
1 x 4-pin power connector
-
Antennas
4 x SMA for Mobile
-
USB
1 x Virtual network interface via micro USB
-
Reset
Reboot/User default reset/Factory reset button
PHYSICAL SPECIFICATION
-
Casing material
Aluminium housing
-
Dimensions
100 x 30 x 93,4 mm
-
Weight
241 g
-
Mounting options
DIN rail, wall mount, flat surface (all require additional kit)
OPERATING ENVIRONMENT
-
Operating temperature
-40 °C to 75 °C
-
Operating humidity
10% to 90% non-condensing
-
Ingress Protection Rating
IP30
REGULATORY & TYPE APPROVALS
-
Regulatory
CE, UKCA, RCM, CB, NBTC, RoHS, REACH
EMC EMISSIONS & IMMUNITY
-
Standards
EN 55032:2015 + A11:2020 + A1:2020
EN 55035:2017 + A11:2020
EN IEC 61000-3-2: 2019 + A1:2021
EN 61000-3-3: 2013 + A1:2019 + A2:2021
EN 301 489-1 V2.2.3
EN 301 489-52 V1.2.1
-
ESD
EN 61000-4-2:2009
-
Radiated Immunity
EN IEC 61000-4-3:2020
-
EFT
EN 61000-4-4:2012
-
Surge Immunity (AC Mains Power Port)
EN 61000-4-5:2014 + A1:2017
-
CS
EN 61000-4-6:2014
-
DIP
EN 61000-4-11:2020
RF
-
Standards
EN 301 908-1 V13.1.1
EN 301 908-2 V13.1.1
EN 301 908-13 V13.1.1
EN 301 908-25 V15.1.1_15.0.6
SAFETY
-
Standards
CE: EN IEC 62368-1:2020 + A11:2020, EN 62311:2020
RCM: AS/NZS 62368.1:2022
CB: IEC 62368-1:2018
What are my payment methods
• Bank Transfer - No Fees
• Credit Cards - VISA, MasterCard 1.5% Handling Fee
• PayPal - 2.75% Handling Fee
Bank Transfer
In order to pay for your order by bank transfer, you must first complete the
checkout process as normal. Upon completion you will be issued with an invoice
for your order which will be processed once your payment clears. From here you
may log onto your internet banking and make a payment for the order amount to
the bank account listed below. Alternatively, you may visit your local branch,
fill out a Deposit Slip with the correct details using the information below
and process this transfer with the bank teller in person.
Bank: Westpac Banking
Corporation
Account Name: ZCOMPUTE PTY LTD.
BSB: 034108
Account Number: 606317
Please add your invoice number and name in the description area when placing your deposit. If you do not have the relevant details on hand, or are unable to add the description, please email or fax through a copy of your deposit receipt as soon as possible. Please note that your order will not be processed until the funds have successfully deposited into our bank account and the payment has been confirmed as received by our accounts department. This process takes 1 - 5 business days.
Credit Card
Zotim accepts all major credit cards - Visa,
Master Card and Debit Cards. Please note, credit card handling fees do apply as
follows: VISA/MasterCard at 1.5%. These fees are comprised of Merchant Service
fees, Terminals fees, fraud prevention costs that cannot absorb due to the
extremely lower than retail prices we offer.
Please note: Due to the rise of credit card fraud
and for your security all credit card orders will be subject to advanced
security checks. If your order does not meet our security check requirements,
you will be contacted and further credit card security procedures will be
implemented.
Shipping
We prefer to use couriers for shipping which include Couriers Please. Startrack and Toll Express.
The courier require a signature on delivery so please give a delivery address where someone will be available to sign for the parcel.
We can use Australia Post as well, however parcels sent through Australia Post are not insured for loss or damage.
How is shipping cost calculated?Shopping at zotim.com.au is all about how much you can save with our shipping methods. As a brief summary - if you buy more than 1 item, your shipping cost for the 2nd, 3rd & subsequent items will be less than the first item!
We can afford this mainly because the cost of the delivery driver travelling to your address is already covered by the first parcel delivery charge, so the remaining parcels are only charged by the additional weight.
Note that we aren't always able to add items to orders after the order is placed, so be sure to order everything you want in one go when you first checkout, to ensure the quickest possible processing of your order, and the lowest possible shipping cost. We also aren't able to merge orders - the above images show what is possible if all items from Order 1 and 2 are ordered on a single order, it does not infer that we can combine multiple orders (our system is unable to accommodate this at this time).
Flat Shipping Fee $14.99
Teltonika TRB500, Industrial 5G Gateway, Ultra-high cellular speeds of up to 1 Gbps, Backward compatible with 4G (LTE CAT 20) network
- •Brand: Teltonika
- •Warranty: 2 Year
- •Model: 99X364850
The Teltonika TLT LAN TRB500 Mobile Router is a top-of-the-line networking product designed for professionals on the move. With a 2 year warranty, this router provides reliable and fast connectivity, perfect for IT professionals, businesses, and anyone requiring seamless internet access. Featuring advanced specifications and Teltonika's trusted brand name, the TLT LAN TRB500 ensures secure and efficient networking, allowing users to stay connected wherever they go. With Teltonika VPN compatibility and a host of other technical benefits, this router is the ideal choice for those seeking high-pe...
Need Help or Found it Cheaper?
Chat with our experts for product advice or price matching on genuine written quotes.
Sold by: Zotim
$741.90
Out of Stock
Freight Calculator
MOBILE
-
Mobile module
5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2); 4G LTE Cat 20 up to 2.0 Gbps DL/ 200M Mbps UL; 3G up to 42 DL/ 5.76 UL Mbps
-
Status
IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
-
SMS
SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
-
USSD
Supports sending and reading Unstructured Supplementary Service Data messages
-
Black/White list
Operator black/white list (by country or separate operators)
-
Band management
Band lock, Used band status display
-
APN
Auto APN
-
Bridge
Direct connection (bridge) between mobile ISP and device on LAN
-
Passthrough
Gateway assigns its mobile WAN IP address to another device on LAN
-
Framed routing
Framed routing: support an IP network behind 5G UE
ETHERNET
-
Ethernet
1 x ETH port, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
NETWORK
-
Routing
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
-
Network protocols
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
-
VoIP passthrough support
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
-
Connection monitoring
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
-
Firewall
Port forward, traffic rules, custom rules
-
Firewall status page
View all your Firewall statistics, rules, and rule counters
-
Ports management
View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
-
Network topology
Visual representation of your network, showing which devices are connected to which other devices
-
Hotspot
Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
-
DHCP
Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
-
DDNS
Supported >25 service providers, others can be configured manually
-
Network backup
Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
-
SSHFS
Possibility to mount remote file system via SSH protocol
SECURITY
-
Authentication
Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & login attempts block, time-based login blocking, built-in random password generator
-
Firewall
Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
-
Attack prevention
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
-
VLAN
Port and tag-based VLAN separation
-
Mobile quota control
Mobile data limit, customizable period, start time, warning limit, phone number
-
WEB filter
Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
-
Access control
Flexible access control of SSH, Web interface, CLI and Telnet
VPN
-
OpenVPN
Multiple clients and a server can run simultaneously, 27 encryption methods
-
OpenVPN Encryption
DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,
BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
-
IPsec
IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
-
GRE
GRE tunnel, GRE tunnel over IPsec support
-
PPTP, L2TP
Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
-
Stunnel
Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
-
DMVPN
Method of building scalable IPsec VPNs
-
SSTP
SSTP client instance support
-
ZeroTier
ZeroTier VPN client support
-
WireGuard
WireGuard VPN client and server support
-
Tinc
Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.
OPC UA
-
Supported modes
Client, Server
-
Supported connection types
TCP
MODBUS
-
Supported modes
Server, Client
-
Supported connection types
TCP
-
Custom registers
MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
-
Supported data formats
8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
DATA TO SERVER
-
Protocol
HTTP(S), MQTT, Azure MQTT, Kinesis
-
Data to server
Extract parameters from multiple sources and different protocols, and send them all to a single server
MQTT GATEWAY
-
Modbus MQTT Gateway
Allows sending commands and receiving data from MODBUS Server through MQTT broker
DNP3
-
Supported modes
Station, Outstation
-
Supported connection
TCP
DLMS
-
DLMS Support
DLMS - standard protocol for utility meter data exchange
-
Supported modes
Client
-
Supported connection types
TCP
API
-
Teltonika Networks Web API (beta) support
Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com
MONITORING & MANAGEMENT
-
WEB UI
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
-
FOTA
Firmware update from server, automatic notification
-
SSH
SSH (v1, v2)
-
SMS
SMS status, SMS configuration, send/read SMS via HTTP POST/GET
-
Call
Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer
-
TR-069
OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
-
MQTT
MQTT Broker, MQTT publisher
-
SNMP
SNMP (v1, v2, v3), SNMP Trap
-
JSON-RPC
Management API over HTTP/HTTPS
-
RMS
Teltonika Remote Management System (RMS)
IOT PLATFORMS
-
Cloud of Things
Allows monitoring of: Device data, Mobile data, Network info, Availability
-
ThingWorx
Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
-
Cumulocity
Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength
-
Azure IoT Hub
Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type
SYSTEM CHARACTERISTICS
-
CPU
Single core ARM Cortex A7, 1.5 GHz
-
RAM
256 MB (128 MB available for userspace)
-
FLASH storage
512 MB (200 MB available for userspace)
FIRMWARE / CONFIGURATION
-
WEB UI
Update FW from file, check FW on server, configuration profiles, configuration backup
-
FOTA
Update FW
-
RMS
Update FW/configuration for multiple devices at once
-
Keep settings
Update FW without losing current configuration
-
Factory settings reset
A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration
FIRMWARE CUSTOMISATION
-
Operating system
RutOS (OpenWrt based Linux OS)
-
Supported languages
Busybox shell, Lua, C, C++, and Python, Java in Package manager
-
Development tools
SDK package with build environment provided
-
GPL customization
You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
INPUT / OUTPUT
-
Input
1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
-
Output
1 x Digital Output, Open collector output, max output 30 V, 300 mA
-
Events
Email, RMS, SMS
-
I/O juggler
Allows to set certain I/O conditions to initiate event
POWER
-
Connector
4-pin industrial DC power socket
-
Input voltage range
9 – 30 VDC, reverse polarity protection, surge protection +/-1 kV 50 µs max
-
Power consumption
Idle: < 3 W, Max < 6 W
PHYSICAL INTERFACES
-
Ethernet
1 x RJ45 port, 10/100/1000 Mbps
-
I/O’s
2 x Configurable I/O pins on 4-pin power connector
-
Status LEDs
3 x connection type status LEDs, 3 x connection strength LEDs, 2 x ETH status LEDs, 1 x Power LED
-
SIM
1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
-
Power
1 x 4-pin power connector
-
Antennas
4 x SMA for Mobile
-
USB
1 x Virtual network interface via micro USB
-
Reset
Reboot/User default reset/Factory reset button
PHYSICAL SPECIFICATION
-
Casing material
Aluminium housing
-
Dimensions
100 x 30 x 93,4 mm
-
Weight
241 g
-
Mounting options
DIN rail, wall mount, flat surface (all require additional kit)
OPERATING ENVIRONMENT
-
Operating temperature
-40 °C to 75 °C
-
Operating humidity
10% to 90% non-condensing
-
Ingress Protection Rating
IP30
REGULATORY & TYPE APPROVALS
-
Regulatory
CE, UKCA, RCM, CB, NBTC, RoHS, REACH
EMC EMISSIONS & IMMUNITY
-
Standards
EN 55032:2015 + A11:2020 + A1:2020
EN 55035:2017 + A11:2020
EN IEC 61000-3-2: 2019 + A1:2021
EN 61000-3-3: 2013 + A1:2019 + A2:2021
EN 301 489-1 V2.2.3
EN 301 489-52 V1.2.1
-
ESD
EN 61000-4-2:2009
-
Radiated Immunity
EN IEC 61000-4-3:2020
-
EFT
EN 61000-4-4:2012
-
Surge Immunity (AC Mains Power Port)
EN 61000-4-5:2014 + A1:2017
-
CS
EN 61000-4-6:2014
-
DIP
EN 61000-4-11:2020
RF
-
Standards
EN 301 908-1 V13.1.1
EN 301 908-2 V13.1.1
EN 301 908-13 V13.1.1
EN 301 908-25 V15.1.1_15.0.6
SAFETY
-
Standards
CE: EN IEC 62368-1:2020 + A11:2020, EN 62311:2020
RCM: AS/NZS 62368.1:2022
CB: IEC 62368-1:2018
What are my payment methods
• Bank Transfer - No Fees
• Credit Cards - VISA, MasterCard 1.5% Handling Fee
• PayPal - 2.75% Handling Fee
Bank Transfer
In order to pay for your order by bank transfer, you must first complete the
checkout process as normal. Upon completion you will be issued with an invoice
for your order which will be processed once your payment clears. From here you
may log onto your internet banking and make a payment for the order amount to
the bank account listed below. Alternatively, you may visit your local branch,
fill out a Deposit Slip with the correct details using the information below
and process this transfer with the bank teller in person.
Bank: Westpac Banking
Corporation
Account Name: ZCOMPUTE PTY LTD.
BSB: 034108
Account Number: 606317
Please add your invoice number and name in the description area when placing your deposit. If you do not have the relevant details on hand, or are unable to add the description, please email or fax through a copy of your deposit receipt as soon as possible. Please note that your order will not be processed until the funds have successfully deposited into our bank account and the payment has been confirmed as received by our accounts department. This process takes 1 - 5 business days.
Credit Card
Zotim accepts all major credit cards - Visa,
Master Card and Debit Cards. Please note, credit card handling fees do apply as
follows: VISA/MasterCard at 1.5%. These fees are comprised of Merchant Service
fees, Terminals fees, fraud prevention costs that cannot absorb due to the
extremely lower than retail prices we offer.
Please note: Due to the rise of credit card fraud
and for your security all credit card orders will be subject to advanced
security checks. If your order does not meet our security check requirements,
you will be contacted and further credit card security procedures will be
implemented.
Shipping
We prefer to use couriers for shipping which include Couriers Please. Startrack and Toll Express.
The courier require a signature on delivery so please give a delivery address where someone will be available to sign for the parcel.
We can use Australia Post as well, however parcels sent through Australia Post are not insured for loss or damage.
How is shipping cost calculated?Shopping at zotim.com.au is all about how much you can save with our shipping methods. As a brief summary - if you buy more than 1 item, your shipping cost for the 2nd, 3rd & subsequent items will be less than the first item!
We can afford this mainly because the cost of the delivery driver travelling to your address is already covered by the first parcel delivery charge, so the remaining parcels are only charged by the additional weight.
Note that we aren't always able to add items to orders after the order is placed, so be sure to order everything you want in one go when you first checkout, to ensure the quickest possible processing of your order, and the lowest possible shipping cost. We also aren't able to merge orders - the above images show what is possible if all items from Order 1 and 2 are ordered on a single order, it does not infer that we can combine multiple orders (our system is unable to accommodate this at this time).
Flat Shipping Fee $14.99
Teltonika TRB500, Industrial 5G Gateway, Ultra-high cellular speeds of up to 1 Gbps, Backward compatible with 4G (LTE CAT 20) network
- •Brand: Teltonika
- •Warranty: 2 Year
- •Model: 99X364850
The Teltonika TLT LAN TRB500 Mobile Router is a top-of-the-line networking product designed for professionals on the move. With a 2 year warranty, this router provides reliable and fast connectivity, perfect for IT professionals, businesses, and anyone requiring seamless internet access. Featuring advanced specifications and Teltonika's trusted brand name, the TLT LAN TRB500 ensures secure and efficient networking, allowing users to stay connected wherever they go. With Teltonika VPN compatibility and a host of other technical benefits, this router is the ideal choice for those seeking high-pe...
Need Help or Found it Cheaper?
Chat with our experts for product advice or price matching on genuine written quotes.
Sold by: Zotim
$741.90
Out of Stock
Freight Calculator
MOBILE
-
Mobile module
5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2); 4G LTE Cat 20 up to 2.0 Gbps DL/ 200M Mbps UL; 3G up to 42 DL/ 5.76 UL Mbps
-
Status
IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
-
SMS
SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
-
USSD
Supports sending and reading Unstructured Supplementary Service Data messages
-
Black/White list
Operator black/white list (by country or separate operators)
-
Band management
Band lock, Used band status display
-
APN
Auto APN
-
Bridge
Direct connection (bridge) between mobile ISP and device on LAN
-
Passthrough
Gateway assigns its mobile WAN IP address to another device on LAN
-
Framed routing
Framed routing: support an IP network behind 5G UE
ETHERNET
-
Ethernet
1 x ETH port, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
NETWORK
-
Routing
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
-
Network protocols
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
-
VoIP passthrough support
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
-
Connection monitoring
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
-
Firewall
Port forward, traffic rules, custom rules
-
Firewall status page
View all your Firewall statistics, rules, and rule counters
-
Ports management
View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
-
Network topology
Visual representation of your network, showing which devices are connected to which other devices
-
Hotspot
Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
-
DHCP
Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
-
DDNS
Supported >25 service providers, others can be configured manually
-
Network backup
Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
-
SSHFS
Possibility to mount remote file system via SSH protocol
SECURITY
-
Authentication
Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & login attempts block, time-based login blocking, built-in random password generator
-
Firewall
Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
-
Attack prevention
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
-
VLAN
Port and tag-based VLAN separation
-
Mobile quota control
Mobile data limit, customizable period, start time, warning limit, phone number
-
WEB filter
Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
-
Access control
Flexible access control of SSH, Web interface, CLI and Telnet
VPN
-
OpenVPN
Multiple clients and a server can run simultaneously, 27 encryption methods
-
OpenVPN Encryption
DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,
BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
-
IPsec
IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
-
GRE
GRE tunnel, GRE tunnel over IPsec support
-
PPTP, L2TP
Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
-
Stunnel
Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
-
DMVPN
Method of building scalable IPsec VPNs
-
SSTP
SSTP client instance support
-
ZeroTier
ZeroTier VPN client support
-
WireGuard
WireGuard VPN client and server support
-
Tinc
Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.
OPC UA
-
Supported modes
Client, Server
-
Supported connection types
TCP
MODBUS
-
Supported modes
Server, Client
-
Supported connection types
TCP
-
Custom registers
MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
-
Supported data formats
8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
DATA TO SERVER
-
Protocol
HTTP(S), MQTT, Azure MQTT, Kinesis
-
Data to server
Extract parameters from multiple sources and different protocols, and send them all to a single server
MQTT GATEWAY
-
Modbus MQTT Gateway
Allows sending commands and receiving data from MODBUS Server through MQTT broker
DNP3
-
Supported modes
Station, Outstation
-
Supported connection
TCP
DLMS
-
DLMS Support
DLMS - standard protocol for utility meter data exchange
-
Supported modes
Client
-
Supported connection types
TCP
API
-
Teltonika Networks Web API (beta) support
Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com
MONITORING & MANAGEMENT
-
WEB UI
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
-
FOTA
Firmware update from server, automatic notification
-
SSH
SSH (v1, v2)
-
SMS
SMS status, SMS configuration, send/read SMS via HTTP POST/GET
-
Call
Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer
-
TR-069
OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
-
MQTT
MQTT Broker, MQTT publisher
-
SNMP
SNMP (v1, v2, v3), SNMP Trap
-
JSON-RPC
Management API over HTTP/HTTPS
-
RMS
Teltonika Remote Management System (RMS)
IOT PLATFORMS
-
Cloud of Things
Allows monitoring of: Device data, Mobile data, Network info, Availability
-
ThingWorx
Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
-
Cumulocity
Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength
-
Azure IoT Hub
Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type
SYSTEM CHARACTERISTICS
-
CPU
Single core ARM Cortex A7, 1.5 GHz
-
RAM
256 MB (128 MB available for userspace)
-
FLASH storage
512 MB (200 MB available for userspace)
FIRMWARE / CONFIGURATION
-
WEB UI
Update FW from file, check FW on server, configuration profiles, configuration backup
-
FOTA
Update FW
-
RMS
Update FW/configuration for multiple devices at once
-
Keep settings
Update FW without losing current configuration
-
Factory settings reset
A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration
FIRMWARE CUSTOMISATION
-
Operating system
RutOS (OpenWrt based Linux OS)
-
Supported languages
Busybox shell, Lua, C, C++, and Python, Java in Package manager
-
Development tools
SDK package with build environment provided
-
GPL customization
You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
INPUT / OUTPUT
-
Input
1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
-
Output
1 x Digital Output, Open collector output, max output 30 V, 300 mA
-
Events
Email, RMS, SMS
-
I/O juggler
Allows to set certain I/O conditions to initiate event
POWER
-
Connector
4-pin industrial DC power socket
-
Input voltage range
9 – 30 VDC, reverse polarity protection, surge protection +/-1 kV 50 µs max
-
Power consumption
Idle: < 3 W, Max < 6 W
PHYSICAL INTERFACES
-
Ethernet
1 x RJ45 port, 10/100/1000 Mbps
-
I/O’s
2 x Configurable I/O pins on 4-pin power connector
-
Status LEDs
3 x connection type status LEDs, 3 x connection strength LEDs, 2 x ETH status LEDs, 1 x Power LED
-
SIM
1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
-
Power
1 x 4-pin power connector
-
Antennas
4 x SMA for Mobile
-
USB
1 x Virtual network interface via micro USB
-
Reset
Reboot/User default reset/Factory reset button
PHYSICAL SPECIFICATION
-
Casing material
Aluminium housing
-
Dimensions
100 x 30 x 93,4 mm
-
Weight
241 g
-
Mounting options
DIN rail, wall mount, flat surface (all require additional kit)
OPERATING ENVIRONMENT
-
Operating temperature
-40 °C to 75 °C
-
Operating humidity
10% to 90% non-condensing
-
Ingress Protection Rating
IP30
REGULATORY & TYPE APPROVALS
-
Regulatory
CE, UKCA, RCM, CB, NBTC, RoHS, REACH
EMC EMISSIONS & IMMUNITY
-
Standards
EN 55032:2015 + A11:2020 + A1:2020
EN 55035:2017 + A11:2020
EN IEC 61000-3-2: 2019 + A1:2021
EN 61000-3-3: 2013 + A1:2019 + A2:2021
EN 301 489-1 V2.2.3
EN 301 489-52 V1.2.1
-
ESD
EN 61000-4-2:2009
-
Radiated Immunity
EN IEC 61000-4-3:2020
-
EFT
EN 61000-4-4:2012
-
Surge Immunity (AC Mains Power Port)
EN 61000-4-5:2014 + A1:2017
-
CS
EN 61000-4-6:2014
-
DIP
EN 61000-4-11:2020
RF
-
Standards
EN 301 908-1 V13.1.1
EN 301 908-2 V13.1.1
EN 301 908-13 V13.1.1
EN 301 908-25 V15.1.1_15.0.6
SAFETY
-
Standards
CE: EN IEC 62368-1:2020 + A11:2020, EN 62311:2020
RCM: AS/NZS 62368.1:2022
CB: IEC 62368-1:2018
What are my payment methods
• Bank Transfer - No Fees
• Credit Cards - VISA, MasterCard 1.5% Handling Fee
• PayPal - 2.75% Handling Fee
Bank Transfer
In order to pay for your order by bank transfer, you must first complete the
checkout process as normal. Upon completion you will be issued with an invoice
for your order which will be processed once your payment clears. From here you
may log onto your internet banking and make a payment for the order amount to
the bank account listed below. Alternatively, you may visit your local branch,
fill out a Deposit Slip with the correct details using the information below
and process this transfer with the bank teller in person.
Bank: Westpac Banking
Corporation
Account Name: ZCOMPUTE PTY LTD.
BSB: 034108
Account Number: 606317
Please add your invoice number and name in the description area when placing your deposit. If you do not have the relevant details on hand, or are unable to add the description, please email or fax through a copy of your deposit receipt as soon as possible. Please note that your order will not be processed until the funds have successfully deposited into our bank account and the payment has been confirmed as received by our accounts department. This process takes 1 - 5 business days.
Credit Card
Zotim accepts all major credit cards - Visa,
Master Card and Debit Cards. Please note, credit card handling fees do apply as
follows: VISA/MasterCard at 1.5%. These fees are comprised of Merchant Service
fees, Terminals fees, fraud prevention costs that cannot absorb due to the
extremely lower than retail prices we offer.
Please note: Due to the rise of credit card fraud
and for your security all credit card orders will be subject to advanced
security checks. If your order does not meet our security check requirements,
you will be contacted and further credit card security procedures will be
implemented.
Shipping
We prefer to use couriers for shipping which include Couriers Please. Startrack and Toll Express.
The courier require a signature on delivery so please give a delivery address where someone will be available to sign for the parcel.
We can use Australia Post as well, however parcels sent through Australia Post are not insured for loss or damage.
How is shipping cost calculated?Shopping at zotim.com.au is all about how much you can save with our shipping methods. As a brief summary - if you buy more than 1 item, your shipping cost for the 2nd, 3rd & subsequent items will be less than the first item!
We can afford this mainly because the cost of the delivery driver travelling to your address is already covered by the first parcel delivery charge, so the remaining parcels are only charged by the additional weight.
Note that we aren't always able to add items to orders after the order is placed, so be sure to order everything you want in one go when you first checkout, to ensure the quickest possible processing of your order, and the lowest possible shipping cost. We also aren't able to merge orders - the above images show what is possible if all items from Order 1 and 2 are ordered on a single order, it does not infer that we can combine multiple orders (our system is unable to accommodate this at this time).
Flat Shipping Fee $14.99
Fast Delivery
Fast shipping on all orders
Big Saving Shop
Save Big Every Order Guarantee
Online Support 24/7
Support Online 24Hrs A Day
Money Back Return
Back Guaranteed Under 7 Days
Contact Info
Information
Customer Service
Zotim is a trading name of Zcompute Pty Ltd (ABN 94 613 746 535) — © 2025 Zcompute Pty Ltd. All rights reserved.
