Simplecom EC412v2, NVMe and SATA M.2 SSD to PCIe x4 Expansion Card
$12.90
In Stock & Ready to ship
Freight Calculator
- •Brand: Simplecom
- •Warranty: 1 Year
- •Model: 99X367475
The Simplecom NVMe and SATA M.2 SSD to PCIe x4 Expansion Card EC412v2 is designed to add M.2 SSD storage to your existing PC motherboard. With support for both NVMe and SATA based M.2 SSDs, this expansion card offers fast data transfer rates and increased storage capacity. The PCIe x4 interface allows for compatibility with PCIe x8 or x16 slots, while the M.2 slots support data transfer rates of up to 64Gbps for NVMe SSDs and 6Gbps for SATA SSDs. Upgrade and expand your storage with the Simplecom EC412v2. Overview: The Simplecom NVMe and SATA M.2 SSD to PCIe x4 Expansion Card EC412v2 is the perfect solution for upgrading and expanding storage on your existing PC motherboard. With support for both NVMe and SATA based M.2 SSDs, this expansion card offers flexibility and convenience. The M Key M.2 slot is dedicated to PCI-E based NVMe SSDs, providing data transfer rates of up to 64Gbps. The B Key M.2 slot is designed for traditional SATA M.2 SSDs, with data transfer rates of up to 6Gbps. The PCIe x4 interface ensures compatibility with PCIe x8 or x16 slots, making it easy to install in your PC. Upgrade your storage with the Simplecom EC412v2 and experience faster data transfer rates and increased performance.
Need Help or Found it Cheaper?
Chat with our experts for product advice or price matching on genuine written quotes.
Simplecom NVMe and SATA M.2 SSD to PCIe x4 Expansion Card

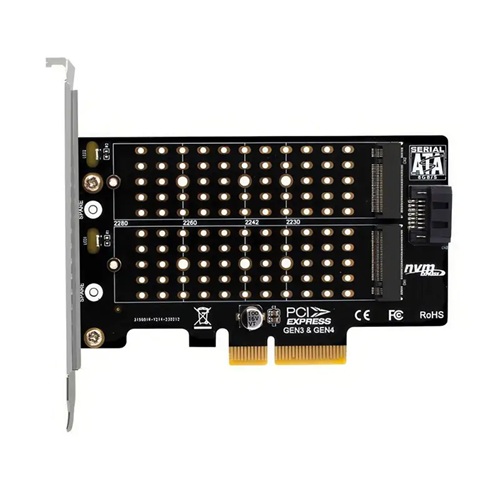

EC412v2 is a PCI Express expansion card designed to add M.2 SSD to an existing PC motherboard. This card provides two M.2 slots, offering flexible support for both NVMe or SATA based M.2 SSDs.
The M Key M.2 slot, is dedicated to PCI-E based NVMe SSD, which utilize the high-speed PCI Express interface. This allows for significantly faster data transfer rates, with speeds reaching up to 64Gbps, making it ideal for demanding applications, large file transfers, and improving system responsiveness.
The B Key M.2 slot, is designed for traditional SATA M.2 SSD. This slot connects to PC via a SATA connector, supporting data transfer rates of up to 6Gbps, which is suitable for more traditional storage needs.
The expansion card offers the convenience of integrating both fast NVMe M.2 SSDs and traditional SATA M.2 SSDs simultaneously, making it an adaptable solution for upgrading and expanding storage on existing systems.
-
One M Key M.2 slot for NVMe M.2 SSD
-
One B Key M.2 slot for SATA M.2 SSD
-
PCIe x4 interface, also compatible PCIe x8 or x16 slot
-
NVMe M.2 (M key) slot supports data transfer rate up to 64Gbps
-
SATA M.2 (B key) slot supports data transfer rate up to 6Gbps
-
Supports NVMe M.2 and SATA M.2 SSD simultaneously
Simplecom NVMe and SATA M.2 SSD to PCIe x4 Expansion Card
EC412v2 is a PCI Express expansion card designed to add M.2 SSD to an existing PC motherboard. This card provides two M.2 slots, offering flexible support for both NVMe or SATA based M.2 SSDs.
The M Key M.2 slot, is dedicated to PCI-E based NVMe SSD, which utilize the high-speed PCI Express interface. This allows for significantly faster data transfer rates, with speeds reaching up to 64Gbps, making it ideal for demanding applications, large file transfers, and improving system responsiveness.
The B Key M.2 slot, is designed for traditional SATA M.2 SSD. This slot connects to PC via a SATA connector, supporting data transfer rates of up to 6Gbps, which is suitable for more traditional storage needs.
The expansion card offers the convenience of integrating both fast NVMe M.2 SSDs and traditional SATA M.2 SSDs simultaneously, making it an adaptable solution for upgrading and expanding storage on existing systems.
-
One M Key M.2 slot for NVMe M.2 SSD
-
One B Key M.2 slot for SATA M.2 SSD
-
PCIe x4 interface, also compatible PCIe x8 or x16 slot
-
NVMe M.2 (M key) slot supports data transfer rate up to 64Gbps
-
SATA M.2 (B key) slot supports data transfer rate up to 6Gbps
-
Supports NVMe M.2 and SATA M.2 SSD simultaneously
Simplecom NVMe and SATA M.2 SSD to PCIe x4 Expansion Card
EC412v2 is a PCI Express expansion card designed to add M.2 SSD to an existing PC motherboard. This card provides two M.2 slots, offering flexible support for both NVMe or SATA based M.2 SSDs.
The M Key M.2 slot, is dedicated to PCI-E based NVMe SSD, which utilize the high-speed PCI Express interface. This allows for significantly faster data transfer rates, with speeds reaching up to 64Gbps, making it ideal for demanding applications, large file transfers, and improving system responsiveness.
The B Key M.2 slot, is designed for traditional SATA M.2 SSD. This slot connects to PC via a SATA connector, supporting data transfer rates of up to 6Gbps, which is suitable for more traditional storage needs.
The expansion card offers the convenience of integrating both fast NVMe M.2 SSDs and traditional SATA M.2 SSDs simultaneously, making it an adaptable solution for upgrading and expanding storage on existing systems.
-
One M Key M.2 slot for NVMe M.2 SSD
-
One B Key M.2 slot for SATA M.2 SSD
-
PCIe x4 interface, also compatible PCIe x8 or x16 slot
-
NVMe M.2 (M key) slot supports data transfer rate up to 64Gbps
-
SATA M.2 (B key) slot supports data transfer rate up to 6Gbps
-
Supports NVMe M.2 and SATA M.2 SSD simultaneously
